Process industries require piping components that can handle demanding operating conditions, aggressive chemicals, and continuous fluid transfer. A reliable isolation component is essential when pipelines need to be safely blocked, opened, or maintained. PVDF Spectacle Blind Flange is a practical solution for applications where chemical resistance, durability, and dependable pipeline isolation are important.
PVDF, or Polyvinylidene Fluoride, is a high-performance thermoplastic known for its excellent resistance to many chemicals, low moisture absorption, mechanical strength, and good temperature performance. When manufactured as a spectacle blind flange, PVDF provides process industries with a lightweight and corrosion-resistant alternative for specific piping isolation requirements.
What Is a PVDF Spectacle Blind Flange?

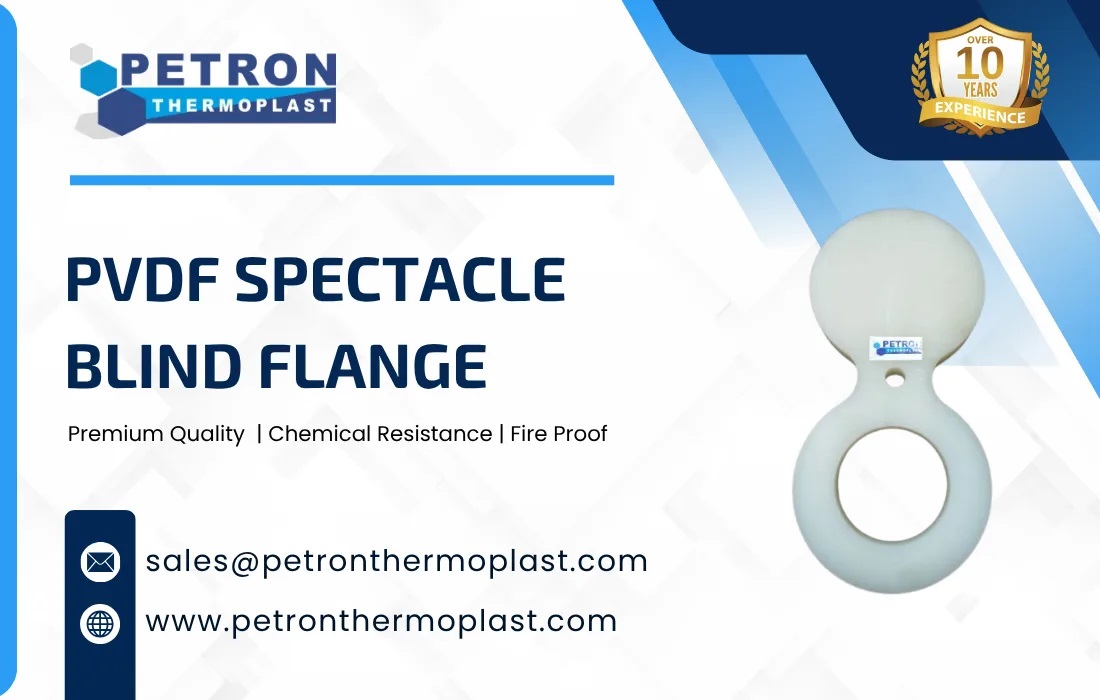

A PVDF Spectacle Blind Flange is a piping component designed to provide positive isolation within a pipeline. Its distinctive spectacle-shaped design consists of a solid blind section connected to an open ring section. By rotating the component, operators can position either the open or closed section within the pipeline.
When the blind section is positioned between the pipe flanges, it prevents fluid from passing through the pipeline. When the open section is positioned in the flow path, the pipeline can operate normally.
This simple design makes spectacle blind flanges useful where regular pipeline isolation is required. PVDF construction adds resistance against corrosion and chemical attack, making the component suitable for demanding process environments.
Why Choose PVDF for Spectacle Blind Flanges?
Material selection is critical in industrial piping systems. Conventional metal components may be exposed to corrosion when handling aggressive chemicals or corrosive process fluids. PVDF offers an important advantage because of its resistance to many chemical environments.
Key benefits of PVDF include:
- Excellent chemical resistance
- Good corrosion resistance
- High mechanical strength
- Low moisture absorption
- Lightweight construction
- Good dimensional stability
- Suitable for demanding process applications
- Long service life when properly selected and installed
Reliable Pipeline Isolation
Pipeline isolation is an important part of industrial maintenance and process safety. Equipment may need to be isolated before inspection, cleaning, repair, or replacement. A spectacle blind flange provides a visible and physical means of indicating whether a pipeline section is open or blocked.
The solid blind section completely closes the designated pipeline path, while the open section allows normal flow. This makes the design convenient for systems where isolation conditions need to be changed periodically.
For process industries, using a properly designed PVDF Spectacle Blind Flange can help simplify maintenance operations while reducing exposure to corrosive fluids.
Applications of PVDF Spectacle Blind Flange
PVDF spectacle blind flanges can be considered for a range of industrial applications where material compatibility and positive isolation are required.
Chemical Processing
Chemical processing plants handle acids, alkalis, solvents, and other aggressive substances. Piping components must therefore be selected according to the chemical properties, concentration, temperature, and operating conditions of the process fluid.
PVDF is widely valued for its chemical resistance and can be suitable for many chemical handling applications when the material is compatible with the specific process.
Water and Wastewater Treatment
Water treatment facilities use different chemicals during purification and wastewater treatment processes. Corrosion-resistant piping components can help maintain system reliability and reduce maintenance requirements.
PVDF spectacle blind flanges can be used in suitable chemical dosing, treatment, and process piping systems.
Semiconductor and Electronics Industries
High-purity fluid handling is important in semiconductor and electronics manufacturing. PVDF is commonly considered for applications requiring chemical resistance and controlled fluid handling.
Spectacle blind flanges can provide isolation points within suitable process piping arrangements.
Pharmaceutical and Specialty Chemical Plants
Pharmaceutical and specialty chemical facilities require carefully selected piping materials. PVDF components can be used in applications where chemical compatibility and clean fluid handling are important.
The appropriate flange design and installation method should always be selected according to the process requirements.
Industrial Manufacturing
Various manufacturing facilities use corrosive chemicals, process water, cleaning solutions, and other fluids. PVDF piping components can provide an alternative to traditional materials in suitable environments.
Key Features of PVDF Spectacle Blind Flange
A high-quality PVDF spectacle blind flange can provide several practical features for industrial piping systems.
Positive Isolation:
The blind section provides a physical barrier to fluid flow when positioned in the closed configuration.
Corrosion Resistance:
PVDF offers strong resistance to many corrosive chemicals, helping the component perform in challenging environments.
Lightweight Construction:
Compared with many metal alternatives, PVDF is lightweight, which can simplify handling and installation.
Long-Term Durability:
PVDF provides a combination of mechanical strength and chemical resistance suitable for many industrial applications.
Easy Identification:
The spectacle design provides a clear visual indication of the open or closed position.
Custom Configurations:
Depending on project requirements, PVDF spectacle blind flanges can be manufactured or selected in different sizes, dimensions, and connection arrangements.
How to Select the Right PVDF Spectacle Blind Flange?
Selecting the correct flange requires more than simply choosing the pipe size. Several technical factors should be reviewed before ordering.
Pipe Size
First, determine the nominal pipe size and flange dimensions required for the piping system. Proper dimensional compatibility is essential for installation.
Pressure Rating
The operating pressure of the pipeline should be checked against the pressure capability of the selected component. The actual pressure rating can depend on temperature, design, dimensions, and connection configuration.
Temperature
PVDF performs well across a useful temperature range, but its mechanical properties vary with temperature. Always select the component according to the actual operating and design temperature.
Chemical Compatibility
Chemical resistance should be evaluated based on the exact fluid, concentration, temperature, and exposure conditions. A material that performs well with one chemical may not be suitable for another under different conditions.
Connection Standard
Confirm the required flange dimensions and drilling pattern before purchasing. Compatibility with the existing piping system helps prevent installation problems.
Operating Environment
Consider external conditions, mechanical loads, vibration, cleaning procedures, and maintenance requirements when selecting the component.
PVDF Spectacle Blind Flange vs. Traditional Metal Options
Metal flanges are widely used across industrial piping systems, but corrosive environments can create challenges such as rust, chemical attack, and maintenance requirements.
PVDF provides a non-metallic alternative for suitable applications. Its corrosion resistance can be particularly valuable in chemical handling environments. Its lower weight can also make transportation and handling easier.
However, material selection should always be based on the complete application rather than choosing a material solely because it is corrosion resistant. Pressure, temperature, chemical compatibility, mechanical loads, and applicable standards should all be considered.
Installation Considerations
Correct installation is essential for reliable performance. Before installation, inspect the flange and sealing surfaces for damage or contamination. Confirm that the flange dimensions and bolt-hole pattern match the connected piping.
The spectacle blind should be positioned correctly according to the required operating condition. Bolts should be tightened evenly using an appropriate sequence and suitable torque for the complete flange system.
Avoid excessive force during installation, as thermoplastic components can require different handling practices compared with metal piping components.
After installation, the system should be checked for proper alignment and leakage under appropriate test conditions.
Maintenance and Inspection
Regular inspection can help identify potential issues before they affect process operations. Maintenance teams should check the component for visible damage, deformation, leakage, or signs of chemical attack.
The flange area should also be inspected during scheduled pipeline maintenance. If the process conditions change, the compatibility of the PVDF material should be reviewed again.
Following the manufacturer’s installation and maintenance recommendations can help improve service life and system reliability.
Why Choose Petron Thermoplast?
Petron Thermoplast provides thermoplastic piping products and engineered solutions for industrial applications. Our product range covers materials such as PVDF, CPVC, UPVC, PPH, HDPE, and other engineering plastics.
Our PVDF Spectacle Blind Flange solutions are intended for applications where reliable pipeline isolation and chemical resistance are important. Product selection can be based on size, application requirements, connection configuration, and project specifications.
For industrial projects, customers can discuss their application requirements to identify a suitable PVDF piping solution.
Conclusion
A reliable isolation component plays an important role in process piping systems. PVDF Spectacle Blind Flange offers a practical solution for applications that require positive pipeline isolation combined with the chemical resistance and durability of PVDF.
From chemical processing and water treatment to pharmaceutical, semiconductor, and specialty manufacturing applications, PVDF can provide valuable performance in demanding environments when correctly selected.
Before purchasing, always evaluate pipe size, pressure, temperature, chemical compatibility, flange standards, and operating conditions. Choosing the right specification and following proper installation practices can help ensure dependable performance and long-term service. For PVDF Spectacle Blind Flange requirements, contact Petron Thermoplast to discuss your industrial application, specifications, and bulk requirements.
